Flatant 2×2 Dual-Band

Category:

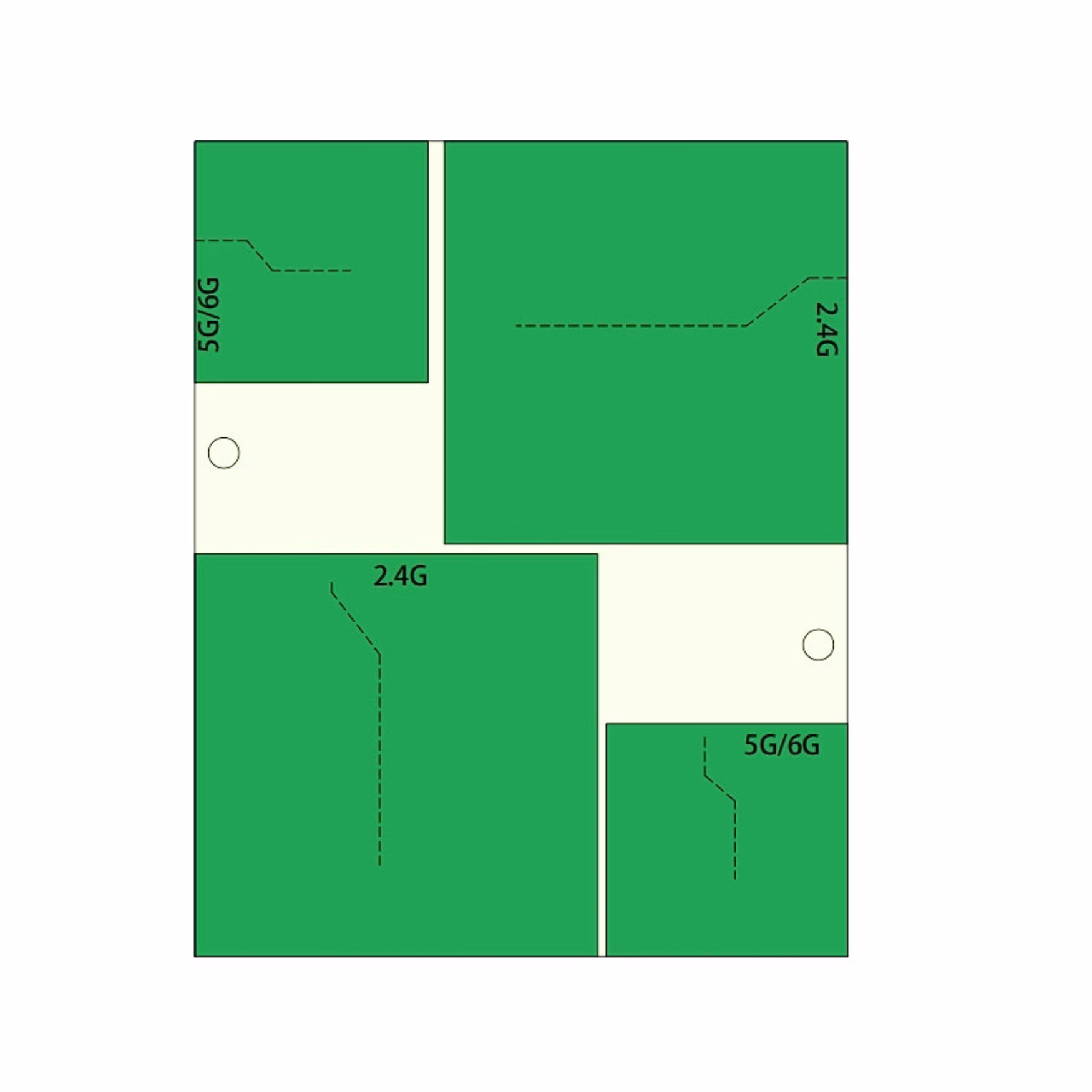

5 dBi 2 Elements Dual-Band Antenna (2.4 GHz & 5–7 GHz)

  • 4x U.FL connectors
  • 5 dBi for 2.4 GHz band and 5dBi for 5 GHz-7 GHz band
  • Wide angle directional front firing
  • Separate vertical and horizontal polarization elements for enhanced MIMO throughput
  • > 20dB for 2.4 GHz and > 30dB for 5-7 GHz
  • < 2:1 @ 2.4 GHz; < 2:1 @ 5.1 GHz – 6.8 GHz;  < 2.5:1  @ 6.8 GHz – 7.1 GHz VSWR, 50 ohm
  • 85mm x 74mm (W x H)



Description

Specifications
Antenna Elements 2 elements for 2×2 MIMO at 2.4 GHz band, 2 elements for 2×2 MIMO at 5-7 GHz band
Gain 5 dBi for 2.4 GHz band and 5 dBi for 5-7 GHz band
Connectors 4x U.FL antenna connectors
Isolation > 20 dB for 2.4 GHz band and > 30 dB for 5-7 GHz band
VSMR 2.4GHz < 2.0:1; 5.1GHz-6.8GHz < 2.0:1; 6.8GHz-7.1GHz <2.5:1
Impedance 50  Ω
Frequency Range 2.412~ 2.472 GHz; 5.180 ~ 7.115 GHz
Dimension (WxH) in mm 85 x 74
