Description

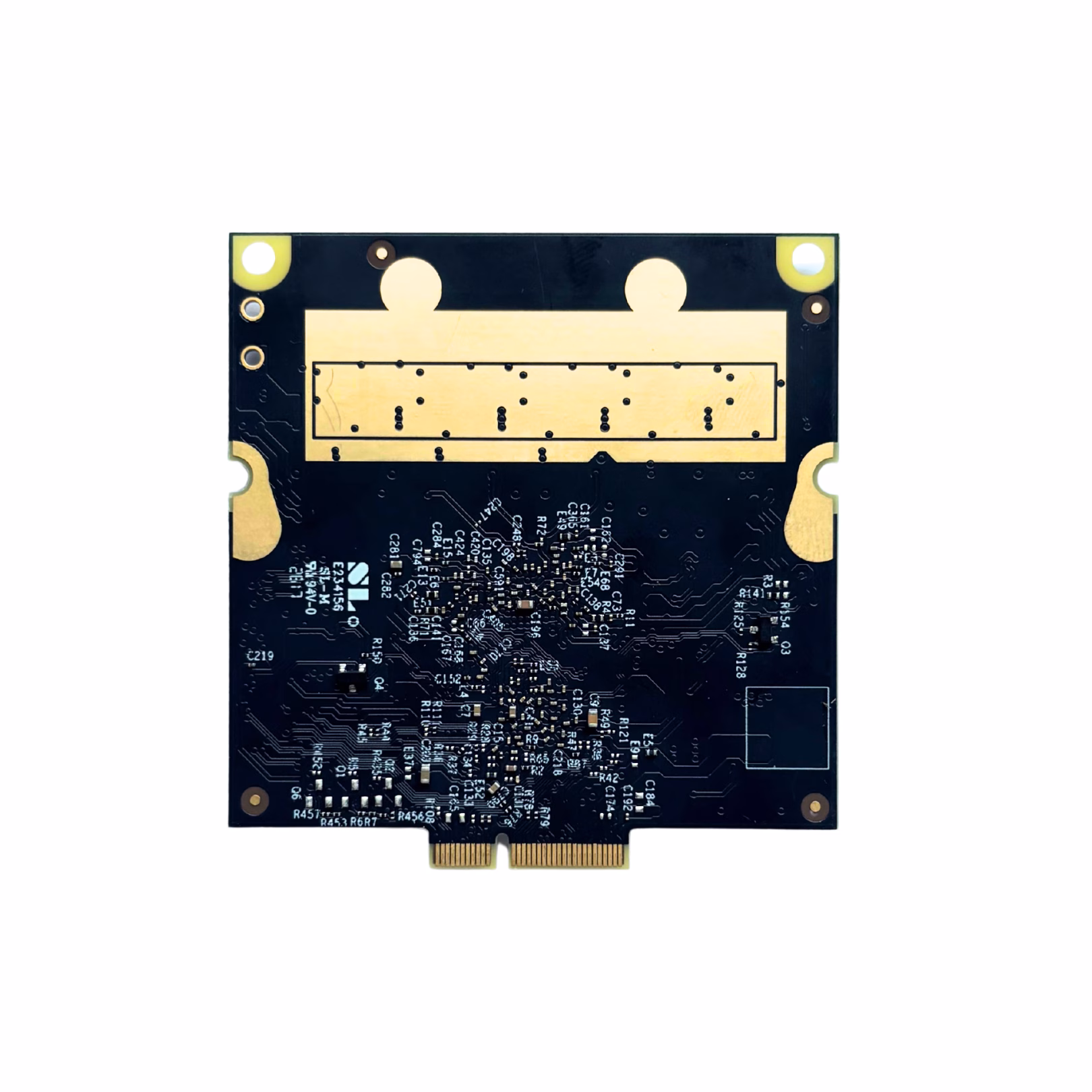

Powered by the Qualcomm QCN9575 + QCN5575 ‘Trestles’ series radio chipset, the Compex WLW8000U2 is an advanced Wi-Fi 8 (IEEE 802.11bn) wireless module built for high-density, high-throughput enterprise and industrial deployments. Engineered on Qualcomm’s TR01.1 reference design, this single-band 2.4GHz M.2 wireless module delivers next-generation PHY performance up to 1.376 Gbps across 5 spatial streams.
Qualcomm QCN9575 + QCN5575
Powered by Qualcomm’s ‘Trestles’ series radio solution and TR01.1 reference design, featuring 5×5 MU-MIMO capability to ensure stable, high-density client connections.
Cutting-Edge Performance
Leverages advanced 4K-QAM modulation across 20/40MHz channel widths, achieving PHY throughput up to 1.376 Gbps in the 2.4GHz band.
M.2 E-Key Form Factor
Standard M.2 E-Key interface with PCIe 3.0 alongside 5x U.FL RF connectors (up to 24dBm per chain) for easy hardware adoption and maximum RF coverage.
Specifications
Standard
| Chipset(s) | Qualcomm QCN9575 +QCN5575 |
| Type of Connector(s) | 5x U.FL Connectors |
| WiFi Interface | PCIe 3.0 |
Wireless
| Wireless | 2.4GHz 802.11b/g/n/ax/be/bn, max 24dBm per chain |
| 2.4GHz | 5×5/4s MU-MIMO, up to 1376.4Mbps |
| WLAN Frequency Range | 2.412~2.472GHz |
| Channel Spectrum Widths for WLAN | 20/40MHz at 2.4GHz |
Power
| Power Consumption | 10W (Max) |
| Operating Voltage | 3.3V + 5V + 12V |
Environmental Compliances
| USA | REACH |
| EU Region | RoHs |
