Driving the evolution of next-generation wireless connectivity, Compex Systems (Compex)  WLE7002E56 integrates dedicated 2×2 5GHz and 2×2 6GHz radios (E56) into a compact standard miniPCIe module, enabling true dual-band concurrent Wi-Fi 7 (802.11be) operation. Designed for enterprise, industrial and embedded wireless applications, the module delivers the performance, flexibility and reliability required for bandwidth-intensive and low-latency wireless deployments.

Powered by Qualcomm’s QCN6274 and QCN9274-I “Waikiki” series radio chipsets, the WLE7002E56 delivers up to 18dBm transmit power per chain with a 2×2 MU-MIMO design. Supporting simultaneously on both 5GHz and 6GHz bands, the module enables efficient spectrum utilization while leveraging key Wi-Fi 7 features including Multi-Link Operation (MLO) for improved reliability and lower latency, OFDMA for enhanced network efficiency and 4096-QAM for higher data throughput.

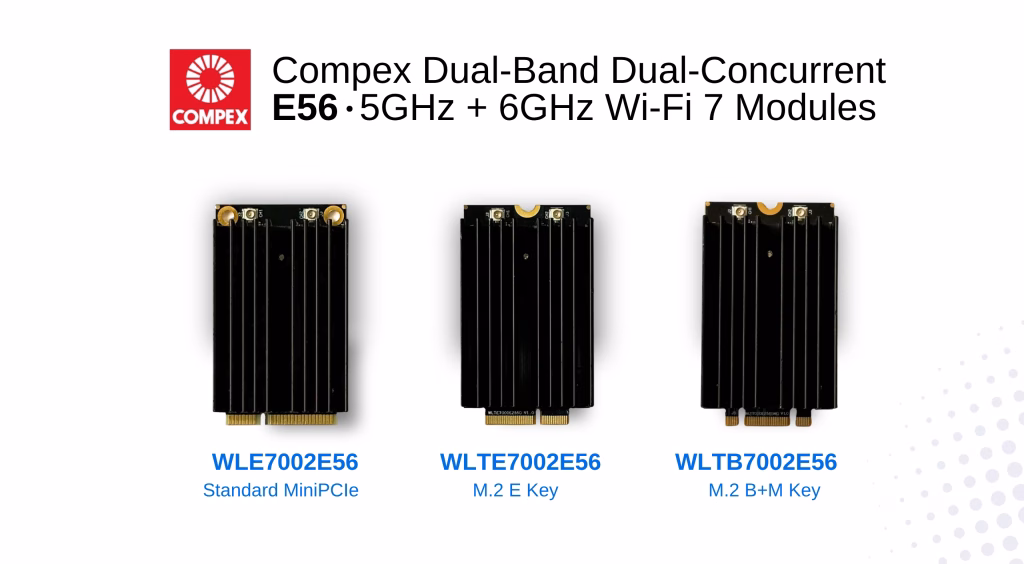

A side-by side look at Compex’s Qualcomm-powered E56 Wi-Fi 7 Dual-Band Dual-Concurrent modules: WLE7002E56 in its own mini PCIe-format (left), the WLTE7002E56 in M.2 E Key (center) and WLTB7002E56 in M.2 B+M Key at (right), powered by Qualcomm.

Beyond the standard miniPCIe form factor, the WLE7002E56 family is also available in M.2 E-Key (WLTE7002E56) and M.2 B-Key (WLTB7002E56) variants, providing OEMs and system designers with greater flexibility to integrate Wi-Fi 7 connectivity into diverse platforms. The Compex modules are compatible with Qualcomm platforms and also support third-party platforms, including Intel x86 and ARM-based processors such as NXP and Marvell.

Smarter RF Design with Diplexer Design

One of the Compex WLE7002E56’s key engineering advantages is its integrated diplexer design. By combining the two concurrent 5GHz and 6GHz signals into a single dual-band antenna, the cost-efficient diplexer design reduces the need for multiple antennas and simplifies the overall device design. The integration of the diplexer design not only enhances performance and reliability, but also improves the overall value and functionality of the wireless devices.

Coexistence Filter for Reliable Performance

Operating two adjacent high-frequency bands in close proximity simultaneously presents significant RF challenges. To maintain optimal wireless performance, the WLE7002E56 incorporates sharp cutoff filtering between the 5GHz and 6GHz radio to effectively manage coexistence. This minimizes unwanted interference while preserves signal integrity, ensuring stable and interference-free connectivity in densely integrated systems.

Ready for Multi-Link Operation (MLO)

As Wi-Fi 7 adoption accelerates, Multi-Link Operation (MLO) becomes increasingly important. The WLE7002E56 features Compex’s patented MLO Interconnect, allowing compatible modules to communicate with low latency for multi-link operation. This enables OEMs to build scalable Wi-Fi 7 platforms capable of higher throughput, lower latency and enhanced network resilience without extensive custom hardware development.

A Complete Wi-Fi 7 Module Portfolio

The WLE7002E56 is part of Compex’s Wi-Fi 7 module portfolio. In addition to the 5GHz + 6GHz (E56) configuration, Compex also provides modules supporting 2.4GHz + 5GHz (E25), 2.4GHz + 6GHz (E26) and dual 5GHz (5GHz-Low + 5GHz-High, E55), giving OEMs the flexibility to select the optimal architecture for enterprise, industrial, embedded and custom wireless platforms that available in standard MiniPCIe and M.2 variants.

Compex Wi-Fi 7 Dual-Band Dual-Concurrent Modules are available in MiniPCIe and M.2 form factors, delivering high performance and adaptability for diverse applications.

As Wi-Fi 7 continues to evolve, successful wireless designs are no longer defined simply by adding more radios. Instead, they are shaped by thoughtful RF engineering that balances performance, integration, flexibility and system complexity. By combining concurrent 5GHz and 6GHz operation, an integrated diplexer, patented MLO Interconnect technology and industrial-grade reliability in a compact form factor, the Compex WLE7002E56 offers a Wi-Fi 7 solution designed to meet the demands of next-generations wireless connectivity.

Compex Wi-Fi 7 modules are now available for order. Learn more about the WLE7002E56 or explore the complete Wi-Fi 7 module lineup at www.compex.com.sg/wifi-7-solutions. Contact our team today at sales@compex.com.sg to find the right Wi-Fi 7 solution for your application.

###
