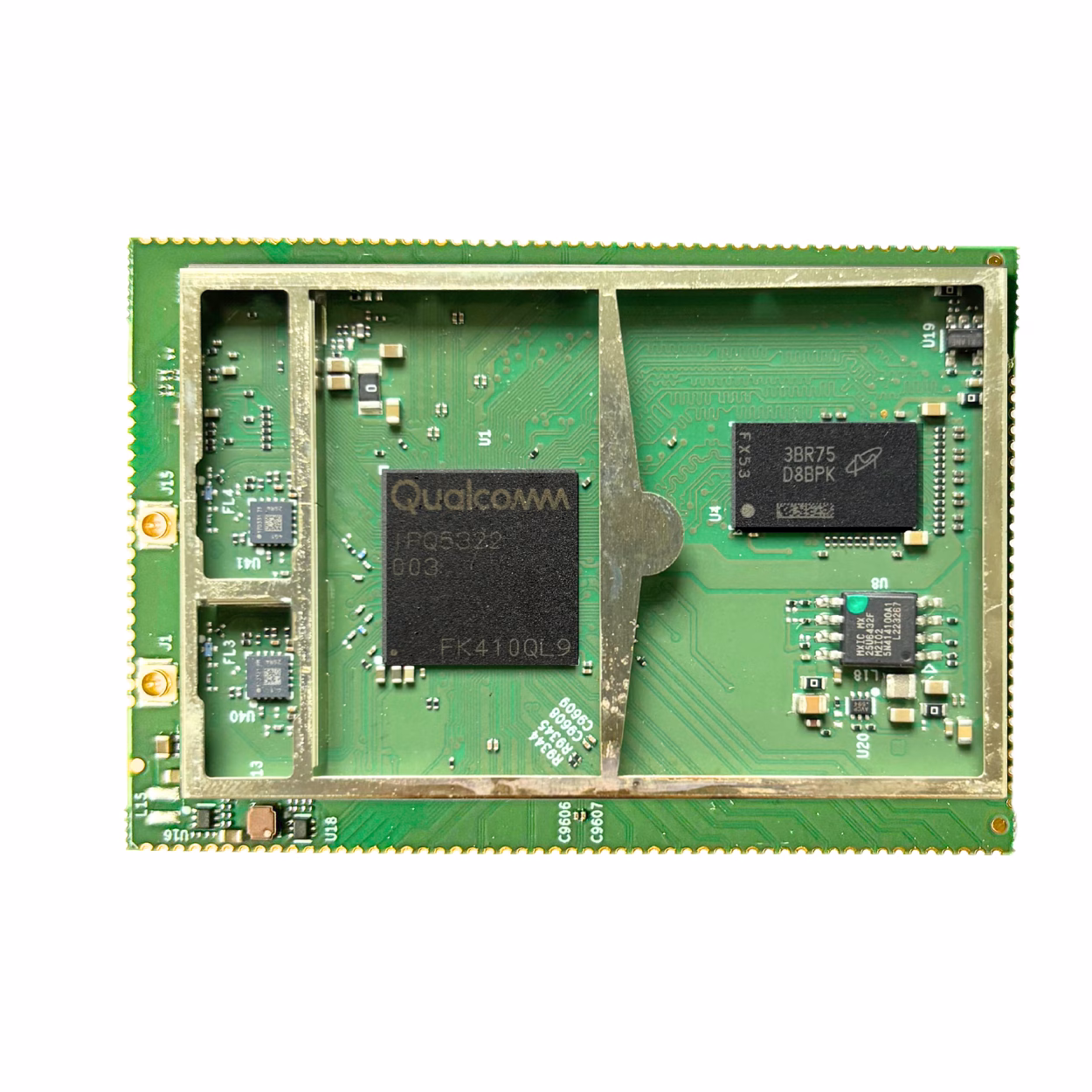

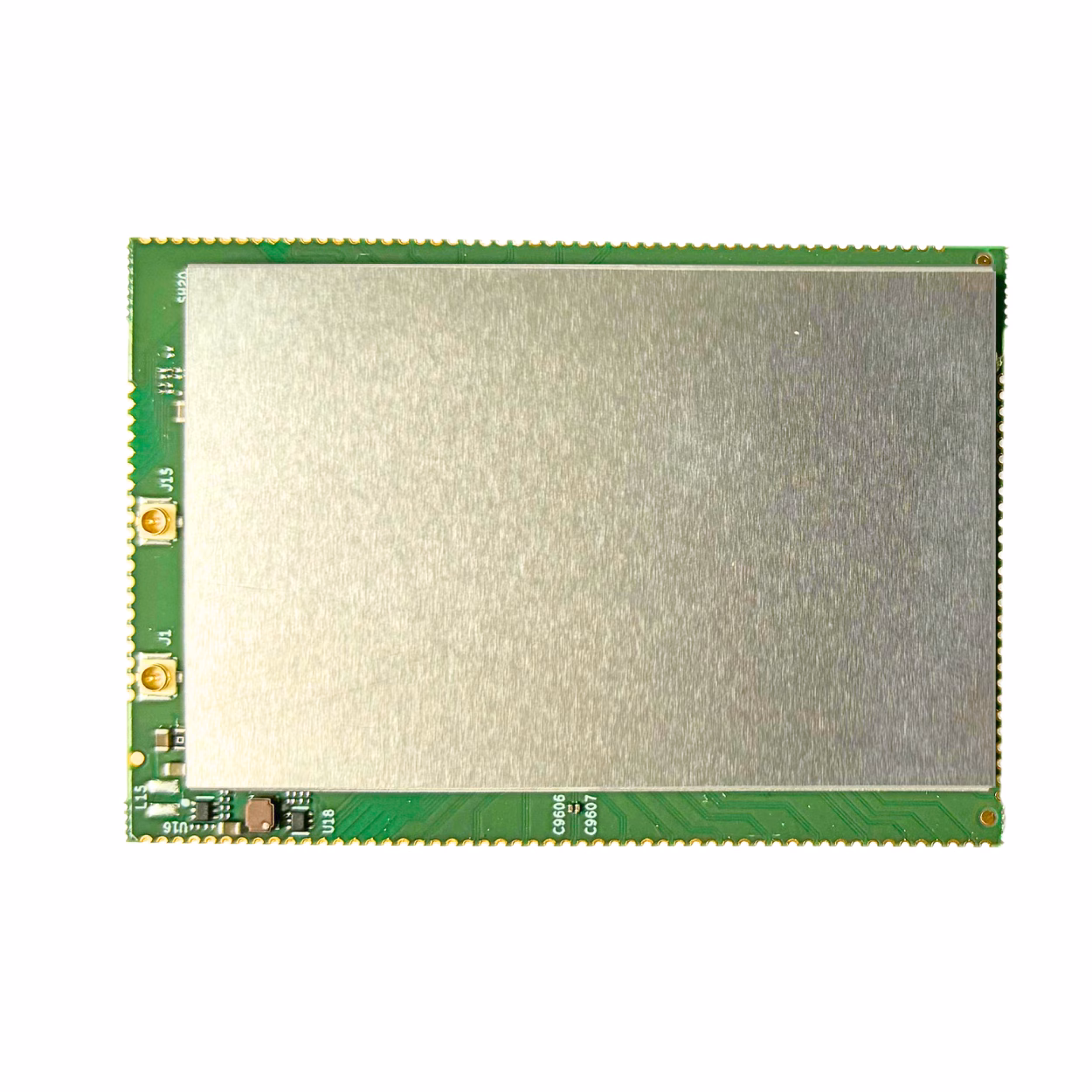

Ginger SoM | WSB530
Ginger SoM | WSB530 - Image 2

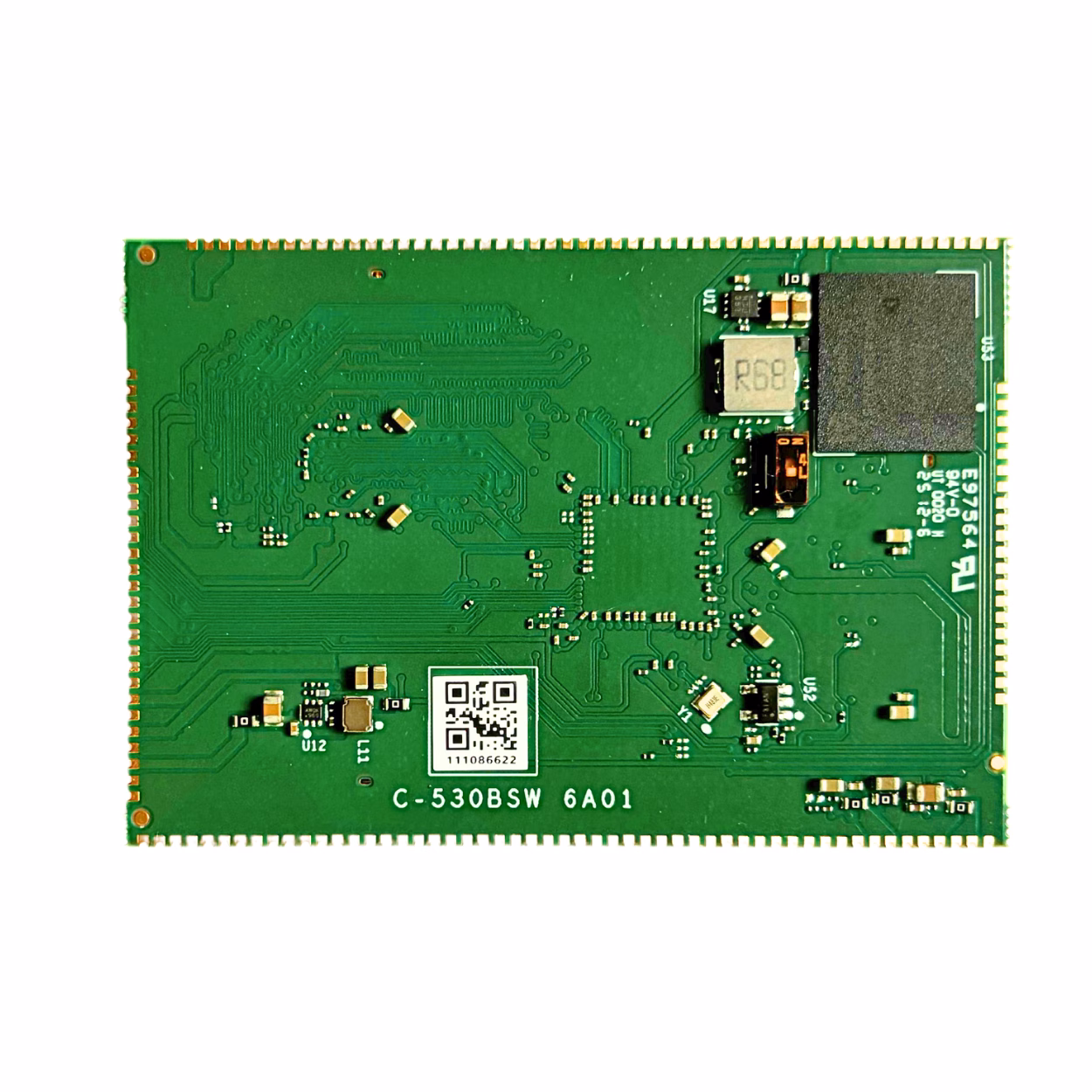

Ginger SoM | WSB530 - Image 3

Ginger SoM | WSB530

Categories: ,

IPQ5322 WiFi 7 (802.11be) 2×2 MU-MIMO System on Module

  • Qualcomm IPQ5322 Quad-Core Cortex-A53 1.5GHz processor ‘Miami’ series
  • 1GB (Up to 3GB), DDR4 16-bit (1×16-bit) interface
  • 16GB EMMC
  • Available Interface:
    33x GPIOs, 2x PCIe 3.0, 1x USB3.0 (or 1x USB2.0 + PCIe 3.0 Option), 3x BLSP ports for UART, I²C and SPI interfaces, 2x multi-GbE Ethernet SerDes supporting external 10G/5G/2.5G/1G PHYs
  • Support Wi-Fi 7 and 5G modules

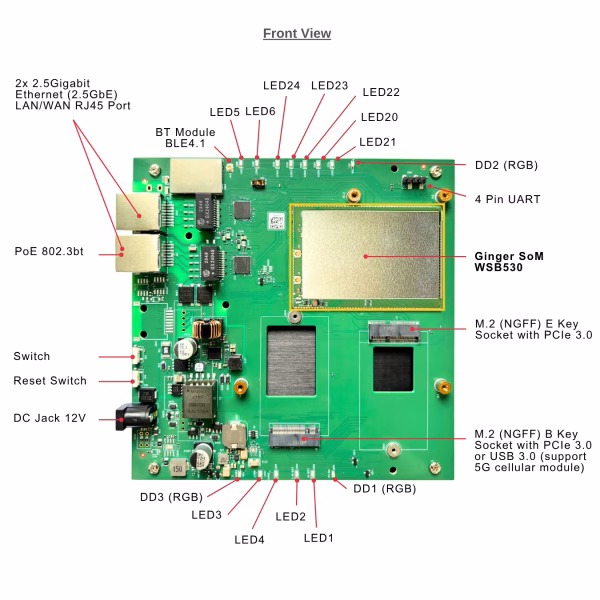

  • Ginger Development Kit (DVK) is available
  • 65mm × 45mm × 7.4mm (W x H x D)



Description

Wireless
Wireless On-board 2×2 2.4GHz MU-MIMO 802.11b/g/n/ax/be, max 22dBm per chain
2x U.FL connectors (IPEX1)
2.4GHz 2×2 on-board 2.4GHz radio, up to 688Mbps physical data rate.
Frequency Range 2.412~2.472GHz

Interface
Ethernet 2x multi-GbE Ethernet SerDes supporting external 10G/5G/2.5G/1G PHYs
PCIe 2x PCIe 3.0
USB 1x USB 3.0 (or 1x USB 2.0 + PCIe 3.0 option)
Serial Interfaces 3x BLSP (UART, I2C and SPI configuration ports), 4x PWM
GPIOs 33x GPIOs
Power
Power Consumption 6W
DC Power 3.3V, 5V, 12V
Certification
Country Certification
USA REACH Compliance
EU RoHS Compliance

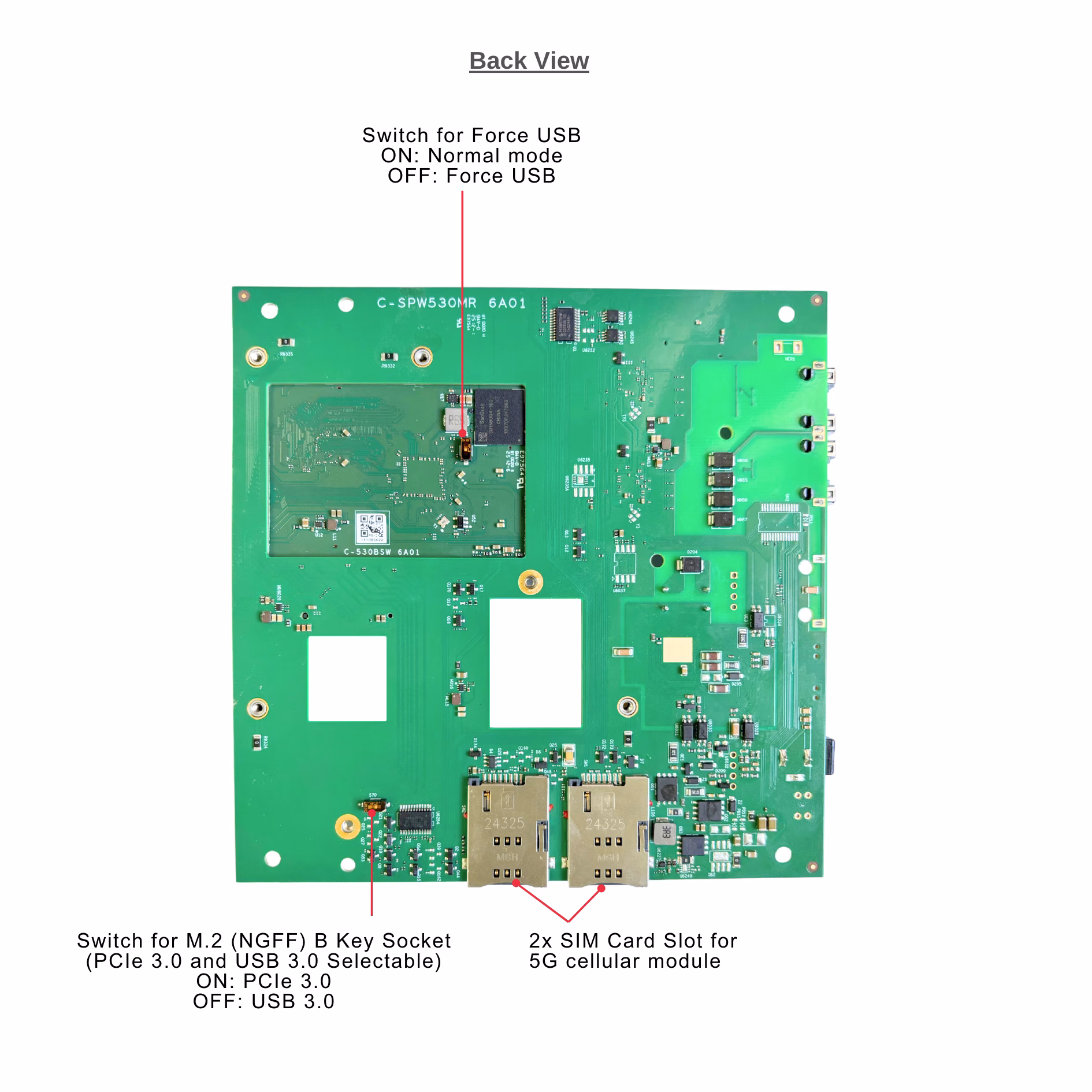

Development Board Details
